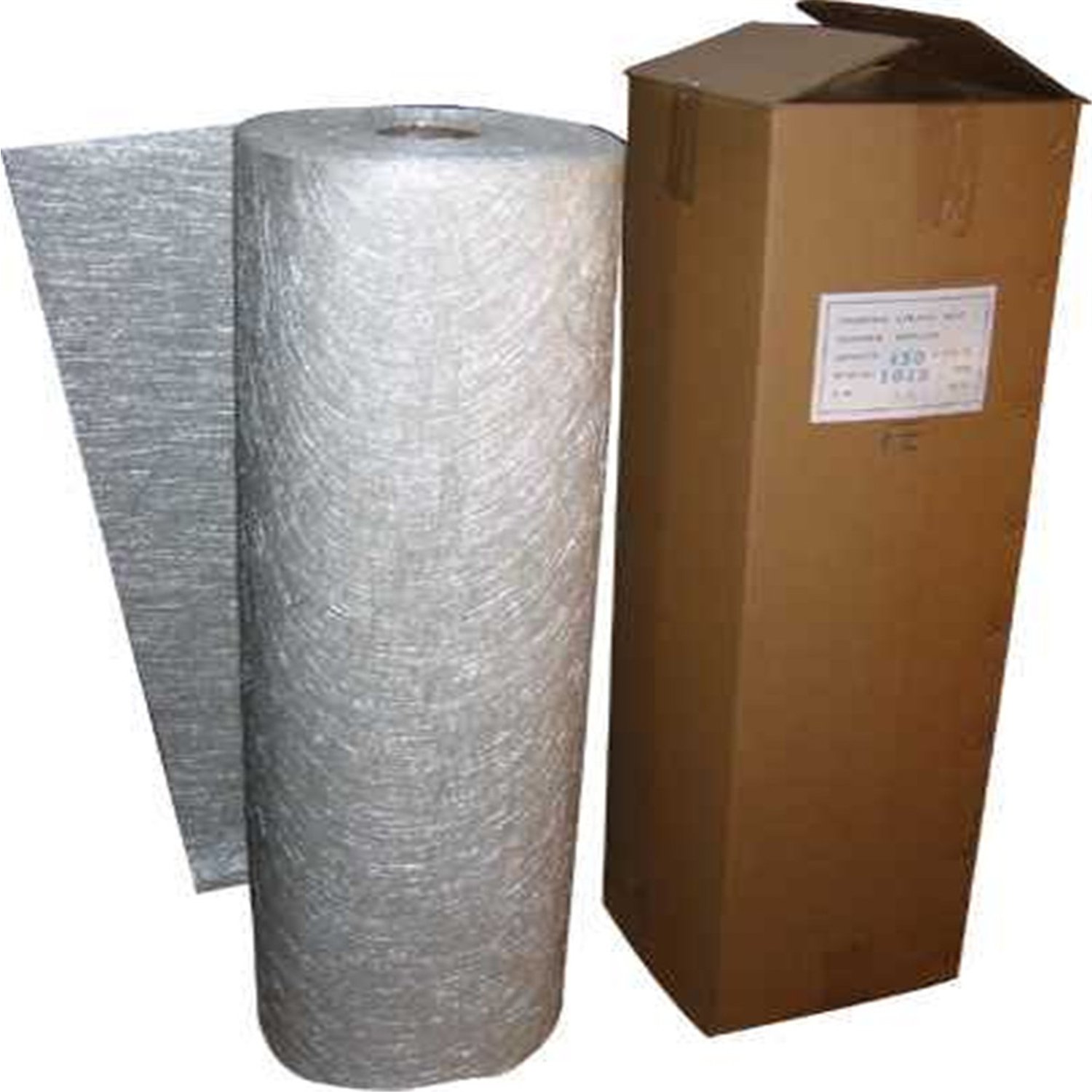

Emulsion Bonded Fibre-glass Mat:
Emulsion Chopped Strand Mat is made of randomly distributed chopped strands held tighter by a emulsion binder. It is compatible with UP, VE, EP resins. It is compatible with UP, VE, EP, PF resins. The roll width ranges from 50mm to 3300mm. Additional demands on wet-out and decomposition time may be available upon request. It is designed for use in hand lay-up, filament winding, compression moulding and continuous laminating processes.
Product Features:- Fast breakdown in styrene
- High tensile strength, allowing for use in hand lay-up process to produce large-area parts
- Good wet-through and fast wet-out in resins, rapid air lease
- Superior acid corrosion resistance
Types Available:
- 450E gm/m2
- 300E gm/m2
- 600E gm/m2
- 225E gm/m2

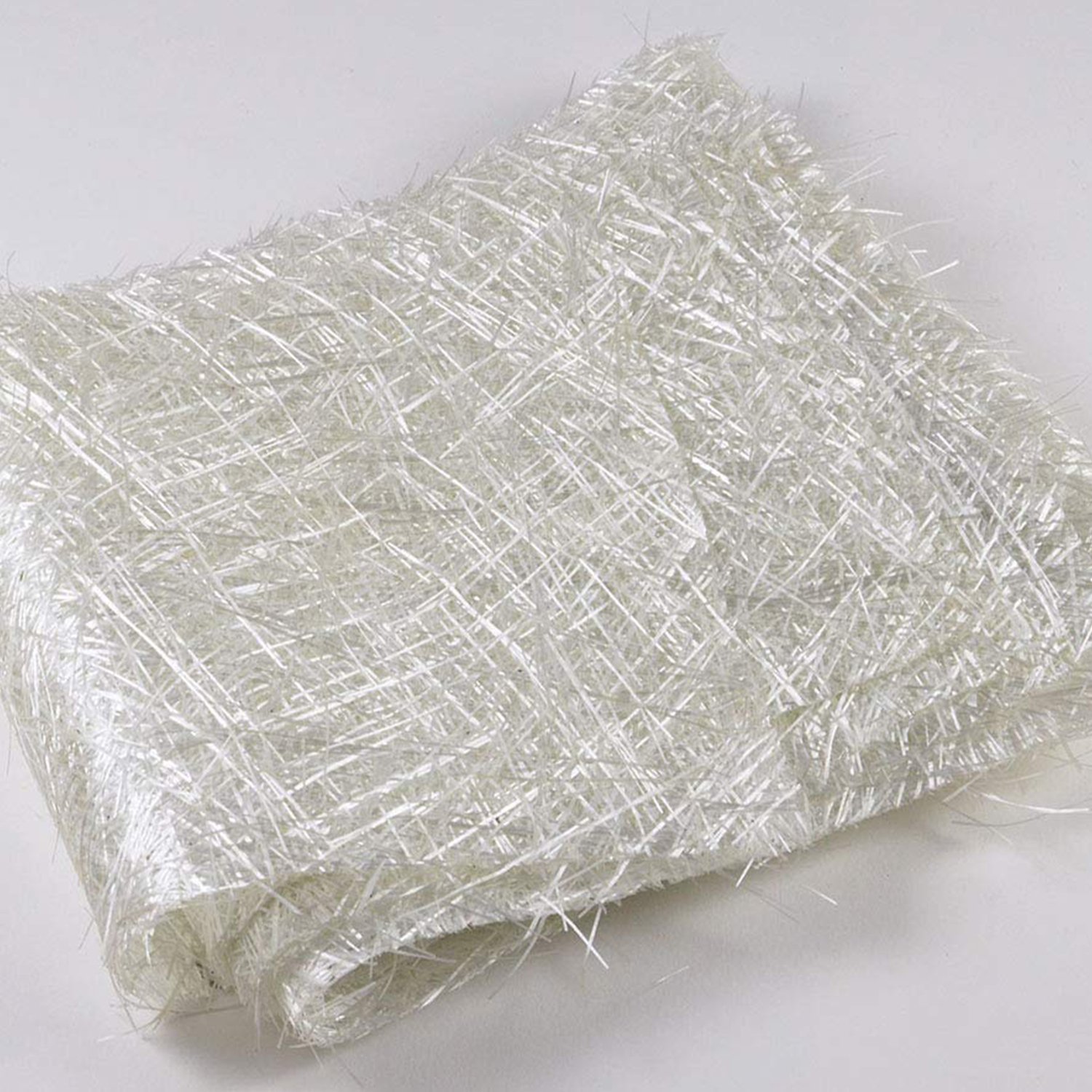

Powder Bonded Fibre-glass Mat
'Powder Bound' fibreglass matting (CSM) is designed for use as chopped strand mat for
epoxy resin, using a
powder based binder that does not need to be broken down in the same way as emulsion bound
mat, making
it essential for use when laminating with epoxy resin, either making a mould or a part.
Epoxy, polyester and vinyl ester compatible
Suitable for mould making and laminating
Suitable for use with our high-temperature mould making system
Types Available:
- 450P gm/m2
- 300P gm/m2
- 200P gm/m2

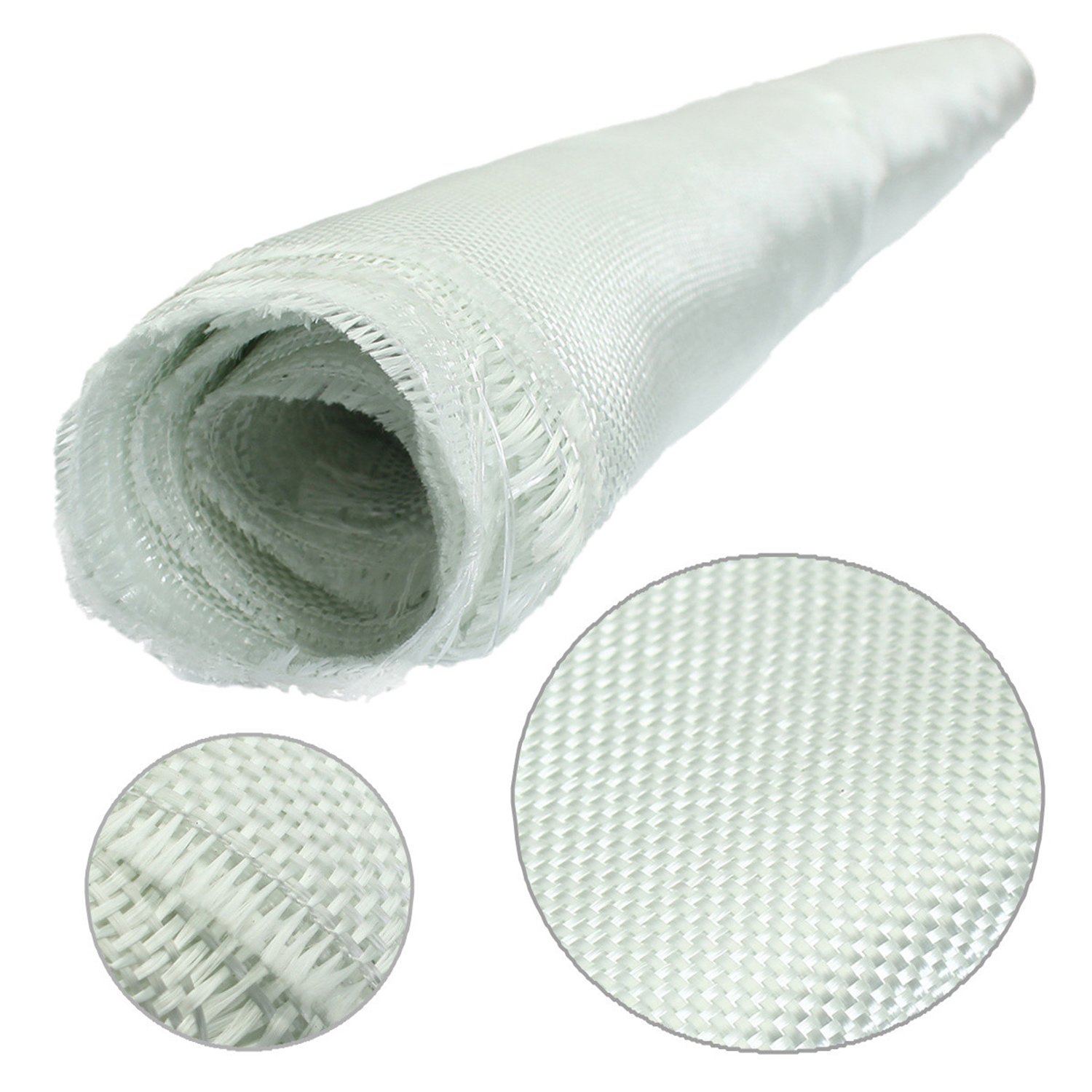

Woven Rovings Fibre-glass Mat
Woven Rovings are bidirectional fabric made by interweaving direct rovings. They are compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins and are a high- performance reinforcement widely used in hand lay up and robot processes to manufacture boats, vessels, plane and automotive parts, furniture and sports facilities.
Product Features:- Warp and weft rovings aligned in a parallel and flat manner, resulting in uniform tension
- Densely aligned fibers, resulting in high dimensional stability and making handling easy
- Good moldability, fast and complete wet out in resins, resulting in high productivity
- Good mechanical properties and high strength of parts
Types Available:
- Vinylester Resin
- Bishphenol Resin
- Super Vinylester Resin

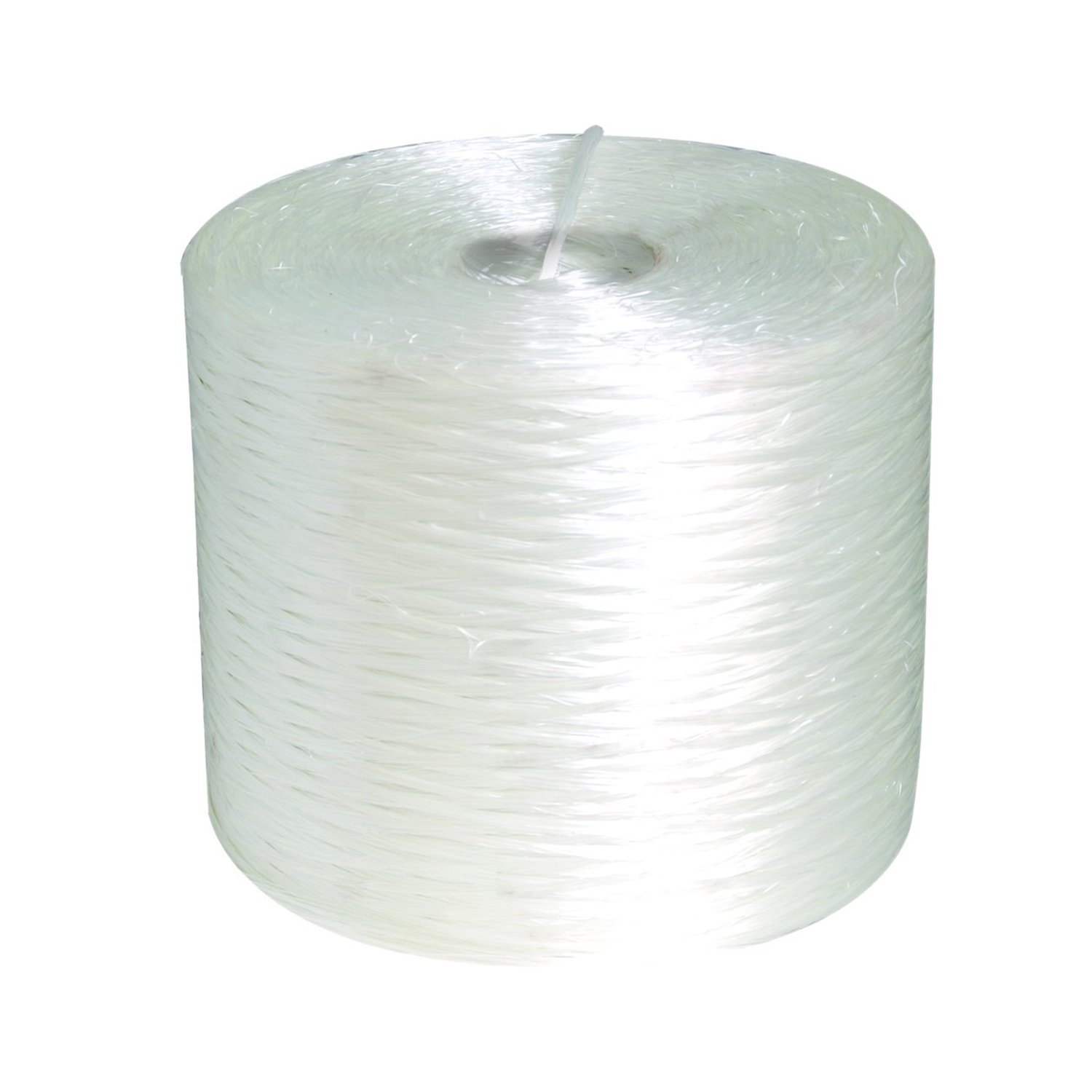

Rovings Fibre-glass
Rovings consist of continuous filaments bonded into a single strand and wound onto a bobbin
shape.
Rovings are designed for excellent process ability in composites technologies like:
- Filament Winding
- Pultrusion
- Knitting & Weaving
- Texturisation
- Long Fibre Technologies (LFT)
Types Available:
- 1200 /2400/4800 TEX
Combination Fibre-glass Mat
A glass fibre reinforcement combination fabric consisting of bi-directional woven rovings one side with a chopped strand mat stitched to other side with a fine polyester yarn.
Types Available:
- CSM450/WR600
- CSM300/WR600

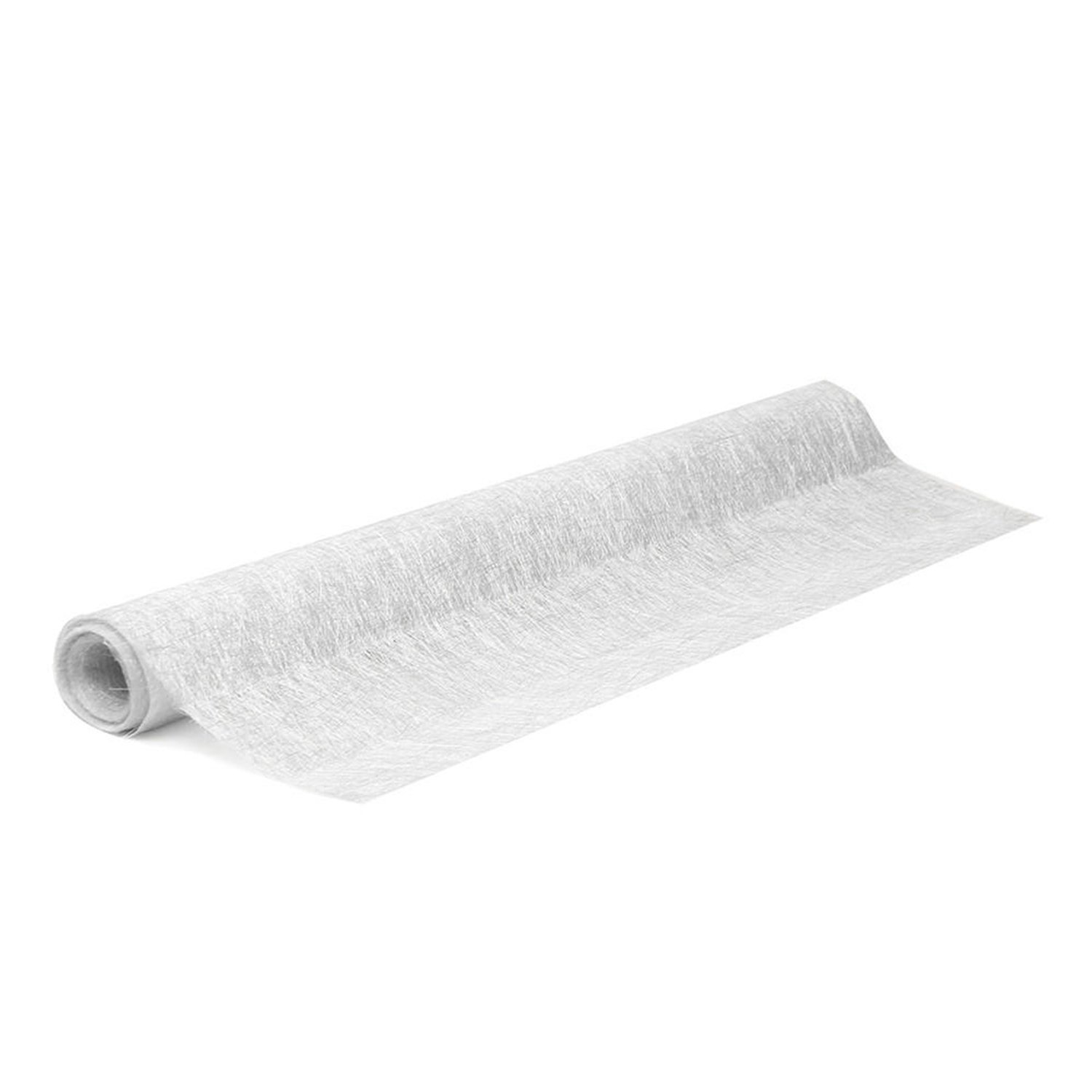

Surface Fibre-glass Mat
Fiberglass Surface Mat is mainly used in the surface layers of FRP products.
Mainly used on pipe and tank winding process, it can improve the product surface property on
corrosion
resistance, compressive strength, seepage resistance, and longer service life.
It is chiefly used in the product with complicated geometric curve, it has
the advantages of good pattern fitness, quick resin impregnation, and it can raise the
intensity and corrosion
resistance of products.
Properties:
- Excellent fibre distribution.
- Smooth surface appearance of finished products.
- Corrosion resistant.
- Low binder content.
- Good moulding properties.
Types Available:
- Surface Mat 30 GM/M2
